smartStepper — MicroPython stepper motor library for RP2040

A MicroPython library for smooth, non-blocking stepper motor control on the Raspberry Pi Pico (RP2040) and Pico2 (RP2350). Uses PIO state machines and DMA for precise, CPU-independent pulse generation and position counting.

Features

• Non-blocking absolute and relative moves (moveTo)
• Non-blocking continuous jog (jog) with configurable speed
• Async homing with configurable sensor polarity; handles pre-asserted sensor (homing.py)
• Smooth acceleration and deceleration (4 curves: linear, smooth1, smooth2/smootherstep, sine — see Acceleration curves)
• Graceful stop with deceleration, or emergency hard stop
• Dynamic parameter adjustment (speed, acceleration) mid-move with automatic motion replan
  • NOTE: re-plan currently suffers from a ~50ms gap; I'm still thinking about how to do this better.
• Position tracking via PIO pulse counter
• Active-low enable pin support (auto-enabled on move start)
• Move timeout with automatic emergency stop
• Up to 4 simultaneous stepper instances (limited by RP2040 PIO state machines)
• Multi-axis synchronized motion (Axis + MultiAxis): hardware-simultaneous DMA start via a single register write

Installation

On the Pico (via mip)

From the MicroPython REPL:

import mip
mip.install("github:bikeNomad/micropython-rp2-smartStepper")

Or from the host via mpremote:

mpremote mip install github:bikeNomad/micropython-rp2-smartStepper

This installs the smartstepper package into /lib/smartstepper/ on the Pico.

Host-side test tools

pip install -e .

This installs logic2-automation and mpremote, which are required to run the HIL test suite (tests/test_hil.py).

Files

Library files are in smartstepper/ (installed as a package on the Pico):

File	Description
smartstepper/__init__.py	Package entry point; re-exports SmartStepper, SmartStepperError, Axis, AxisError, MultiAxis, Arc, ArcError
smartstepper/smartStepper.py	High-level SmartStepper class
smartstepper/axis.py	Axis wrapper with hard speed/acceleration limits; supports deferred DMA start
smartstepper/multiaxis.py	MultiAxis synchronized multi-axis planner
smartstepper/arc.py	Arc 2-axis circular arc motion (chord linearization; G02/G03 compatible)
smartstepper/homing.py	Async homing routine (three-phase, handles pre-asserted sensor)
smartstepper/pulseGenerator.py	PIO + DMA pulse generator (internal)
smartstepper/pulseCounter.py	PIO-based pulse counter for position tracking (internal)
package.json	MicroPython mip package descriptor
pyproject.toml	Host-side test tool dependencies (pip install -e .)

Test scripts are in tests/:

File	Description
tests/test_config.py	Pin assignments for all Pico-side test scripts
tests/test_smartStepper.py	Manual test / demo for SmartStepper
tests/test_pulseGenerator.py	Manual test / demo for PulseGenerator
tests/test_pulseCounter.py	Manual test / demo for PulseCounter
tests/hil_moveto.py	Pico-side script used by the HIL test suite
tests/hil_config.py	HIL wiring / port configuration
tests/test_hil.py	Host-side hardware-in-the-loop test runner

Testing

Manual tests (run on the Pico)

Each module has a standalone demo script. Deploy the library and the test script, then run it:

PORT=/dev/cu.usbmodem1

# SmartStepper demo
mpremote connect $PORT cp -r smartstepper/ : + cp tests/test_config.py tests/test_smartStepper.py :
mpremote connect $PORT run tests/test_smartStepper.py

# PulseGenerator demo
mpremote connect $PORT cp -r smartstepper/ : + cp tests/test_config.py tests/test_pulseGenerator.py :
mpremote connect $PORT run tests/test_pulseGenerator.py

# PulseCounter demo
mpremote connect $PORT cp -r smartstepper/ : + cp tests/test_config.py tests/test_pulseCounter.py :
mpremote connect $PORT run tests/test_pulseCounter.py

Adjust the port (/dev/cu.usbmodem1) and pin numbers in tests/test_config.py to match your hardware.

Hardware-in-the-loop (HIL) tests

The HIL suite runs on the host PC. It deploys scripts to the Pico via mpremote, captures the step and direction signals with a Saleae Logic analyzer, and asserts correctness against the raw edge data.

Prerequisites:

• Logic 2 open with Automation enabled (Settings → Automation, port 10430)
• Saleae channels wired to the Pico per tests/hil_config.py
• Pico connected via USB
• Python package: pip install logic2-automation

Configuration:

Edit tests/hil_config.py to match your wiring and USB port:

STEP_CHANNEL = 0      # Saleae ch 0  →  Pico GPIO 13
DIR_CHANNEL  = 1      # Saleae ch 1  →  Pico GPIO 14
STEP_PIN     = 13     # Pico GPIO for step signal
PICO_PORT    = '/dev/cu.usbmodem314201'

Run:

python tests/test_hil.py

Tests:

Test	What it checks
test_pulse_generator	PulseGenerator timing: edge count and inter-pulse gaps for a two-speed sequence
test_moveto_pulse_count	moveTo(50) produces the expected step count; Saleae edge count matches on-board PulseCounter
test_accel_profile	Step frequency is monotonically increasing at the start and decreasing at the end of a move
test_replan_profile	Mid-move maxSpeed change triggers _replan(); verifies the step frequency drops from the fast cruise speed to the new lower speed

Usage

Basic setup

from smartstepper import SmartStepper

stepper = SmartStepper(
    stepPin=27,       # step pulse output pin number (or machine.Pin)
    dirPin=26,        # direction output pin number (or machine.Pin)
    enablePin=25,     # optional active-low enable pin (or None)
    accelCurve='smooth2'  # 'linear', 'smooth1', 'smooth2', or 'sine'
)

stepper.stepsPerUnit = 96.   # microsteps per mm (or whatever unit you use)
stepper.minSpeed     = 1     # units/s — starting/stopping speed
stepper.maxSpeed     = 50    # units/s — peak speed
stepper.acceleration = 300   # units/s²

Absolute move

stepper.moveTo(100)          # move to 100 mm (absolute)
stepper.waitEndOfMove()      # block until done

stepper.moveTo(0)            # return to origin
stepper.waitEndOfMove()

Relative move

stepper.moveTo(50, relative=True)   # move forward 50 mm
stepper.waitEndOfMove()

stepper.moveTo(-20, relative=True)  # move back 20 mm
stepper.waitEndOfMove()

Triangular move (no constant-velocity phase)

A triangular move accelerates directly to its peak speed and then immediately decelerates, with no constant-velocity cruise section. This is useful for short, precise point-to-point moves or where a symmetric speed profile is required.

stepper.moveTo(10, triangular=True)   # accel → decel, no cruise
stepper.waitEndOfMove()

If the natural peak speed for the given distance would exceed maxSpeed, the acceleration is automatically reduced so the move remains triangular at maxSpeed (still no cruise section).

Move with a fixed acceleration time

accel_time specifies how long the acceleration phase should last (in seconds). The peak speed is minSpeed + acceleration × accel_time, clamped to maxSpeed. Any remaining distance is covered at that peak speed before decelerating.

stepper.moveTo(100, accel_time=0.5)   # accelerate for exactly 0.5 s, then cruise and decel
stepper.waitEndOfMove()

This is primarily used for multi-axis synchronization: compute the longest acceleration time across all axes, then give every axis the same accel_time so all acceleration phases take identical durations.

Multi-axis synchronized moves

Axis wraps a SmartStepper and adds hard speed/acceleration limits that cannot be exceeded even when properties are changed at runtime. MultiAxis plans a coordinated move across any number of axes so that every axis completes its acceleration phase at the same instant, then uses a single hardware register write to start all DMA channels simultaneously.

import asyncio
from smartstepper import SmartStepper, Axis, MultiAxis

stepper_x = SmartStepper(stepPin=2, dirPin=3, enablePin=4)
stepper_x.stepsPerUnit = 96
stepper_x.minSpeed = 2
stepper_x.maxSpeed = 100
stepper_x.acceleration = 400

stepper_y = SmartStepper(stepPin=5, dirPin=6, enablePin=7)
stepper_y.stepsPerUnit = 96
stepper_y.minSpeed = 2
stepper_y.maxSpeed = 80      # Y axis is slower
stepper_y.acceleration = 300

x = Axis(stepper_x, hard_max_speed=100, hard_max_accel=400)
y = Axis(stepper_y, hard_max_speed=80,  hard_max_accel=300)

ma = MultiAxis([x, y])

async def main():
    # Both axes start their accel phase simultaneously and finish it
    # at the same time, then cruise and decel independently.
    ma.move({x: 100, y: 50})
    await ma.wait_done()

asyncio.run(main())

MultiAxis.move() computes the natural triangular peak speed for each axis and derives its acceleration time. The longest of these becomes the common accel time; every axis is given that same accel_time so their ramps finish together. The move is then started with a single write to the RP2040/RP2350 DMA_MULTI_CHAN_TRIGGER register — a hardware guarantee of simultaneous start within the same AHB bus cycle.

Circular arc motion (G02/G03)

Arc linearizes a circular arc into chord segments and executes each segment as a synchronized MultiAxis.move(). The chord tolerance controls the maximum deviation between the ideal arc and the straight-line chords.

import asyncio
from smartstepper import SmartStepper, Axis, Arc

stepper_x = SmartStepper(stepPin=2, dirPin=3, enablePin=4)
stepper_x.stepsPerUnit = 100
stepper_x.minSpeed = 2
stepper_x.maxSpeed = 20
stepper_x.acceleration = 10

stepper_y = SmartStepper(stepPin=5, dirPin=6, enablePin=7)
stepper_y.stepsPerUnit = 100
stepper_y.minSpeed = 2
stepper_y.maxSpeed = 20
stepper_y.acceleration = 10

x = Axis(stepper_x, hard_max_speed=20, hard_max_accel=10)
y = Axis(stepper_y, hard_max_speed=20, hard_max_accel=10)

arc = Arc(x, y)

async def main():
    # Quarter-circle CCW (G03) from (0, 0) to (0, 100).
    # Center offset i=-0, j=0 => center=(0, 0).
    # Same as G03 X0 Y100 I0 J0 (starting at X100 Y0).
    x.position = 100
    y.position = 0
    await arc.move(0, 100, i=-100, j=0, direction='ccw', chord_tol=0.1)

asyncio.run(main())

direction='ccw' corresponds to G03; direction='cw' to G02. The i and j parameters are the center offset from the current axis position (same convention as G-code I/J). chord_tol is the maximum allowed deviation between the chord and the arc (in user units); smaller values produce more segments and a smoother path.

You can also use Axis standalone with a deferred start:

ch_x = x.prepare_move(100)
ch_y = y.prepare_move(50)
# ... set up other things ...
x.start_move()   # fires only x; use MultiAxis for simultaneous start

Move with timeout

from smartstepper import SmartStepper, SmartStepperError

try:
    stepper.moveTo(200, timeout=5.0)   # fail if not done in 5 seconds
    stepper.waitEndOfMove()
except SmartStepperError as e:
    print("Error:", e)   # "Move timed out" if motor stalled

Alternatively, poll without blocking:

stepper.moveTo(200, timeout=5.0)
while stepper.moving:
    if stepper.timedOut:
        stepper.stop(emergency=True)
        break
    # ... do other work

Jog (continuous motion)

stepper.jog(maxSpeed=30, direction='up')   # start jogging
# ... application loop ...
stepper.stop()                             # decelerate and stop
stepper.waitEndOfMove()                    # wait for decel to finish

Enable/disable motor driver

The enable pin is driven automatically when a move starts. You can also control it manually:

stepper.disable()   # de-energize coils (reduce heat / allow manual movement)
stepper.enable()    # re-energize coils

Dynamic parameter changes mid-move

Speed and acceleration can be updated while the motor is moving. The motion profile is automatically rebuilt and handed to the DMA controller without stopping (~10 µs transition):

stepper.moveTo(500)
time.sleep(0.5)
stepper.maxSpeed = 20     # slow down on the fly
time.sleep(0.5)
stepper.maxSpeed = 80     # speed back up
stepper.waitEndOfMove()

Position

print(stepper.position)    # current position in units (read from PIO counter)
stepper.position = 0       # reset/home position (only when not moving)

Emergency stop

stepper.stop(emergency=True)   # cut pulses immediately (may lose steps)

Homing

homing.py provides an async homing routine that works with any sensor that has a value() method (e.g. machine.Pin).

Phase 0 — initial backoff (if needed): if the sensor is already asserted when homing starts, jog away from it at slowSpeed until it de-asserts, then stop. This makes homing repeatable regardless of starting position.

Phase 1 — fast approach: jog toward the sensor at fastSpeed. When the sensor asserts, decelerate smoothly to a stop.

Phase 2 — slow backoff: jog away from the sensor at slowSpeed. The instant the sensor de-asserts, stop immediately and define that position as home (position = 0).

import asyncio
from smartstepper import homing

sensor = machine.Pin(15, machine.Pin.IN, machine.Pin.PULL_UP)

async def main():
    await homing.home(
        stepper,
        sensor,
        fastSpeed  = 40,     # units/s, approach speed
        slowSpeed  = 2,      # units/s, backoff speed
        direction  = 'down', # direction toward home sensor
        activeState= 0,      # 0 = active-low (pull-up wiring)
        timeout    = 10.0,   # raise HomingError if not done in 10 s
    )
    print("Homed at", stepper.position)  # always 0

asyncio.run(main())

activeState=1 for active-high sensors (pull-down or open-collector with external pull-up to logic level). timeout=None disables the timeout. minSpeed and maxSpeed are saved and restored after homing completes or times out. HomingError is raised on timeout; import it from smartstepper.homing:

from smartstepper.homing import HomingError

async def main():
    try:
        await homing.home(stepper, sensor, timeout=10.0)
    except HomingError as e:
        print("Homing failed:", e)

Acceleration curves

The accelCurve constructor argument selects the shape of the speed ramp used during acceleration and deceleration. All four curves cover the same distance in the same time for a given speed change — they differ in how smoothly they distribute jerk (rate of change of acceleration).

Curve	Description
linear	Constant acceleration; abrupt jerk spike at ramp start and end
smooth1	Hermite smoothstep — zero acceleration at endpoints, moderate jerk
smooth2	Smootherstep (default) — zero acceleration and zero jerk at endpoints
sine	Half-cosine ramp — similar to smooth1, slightly different mid-ramp shape

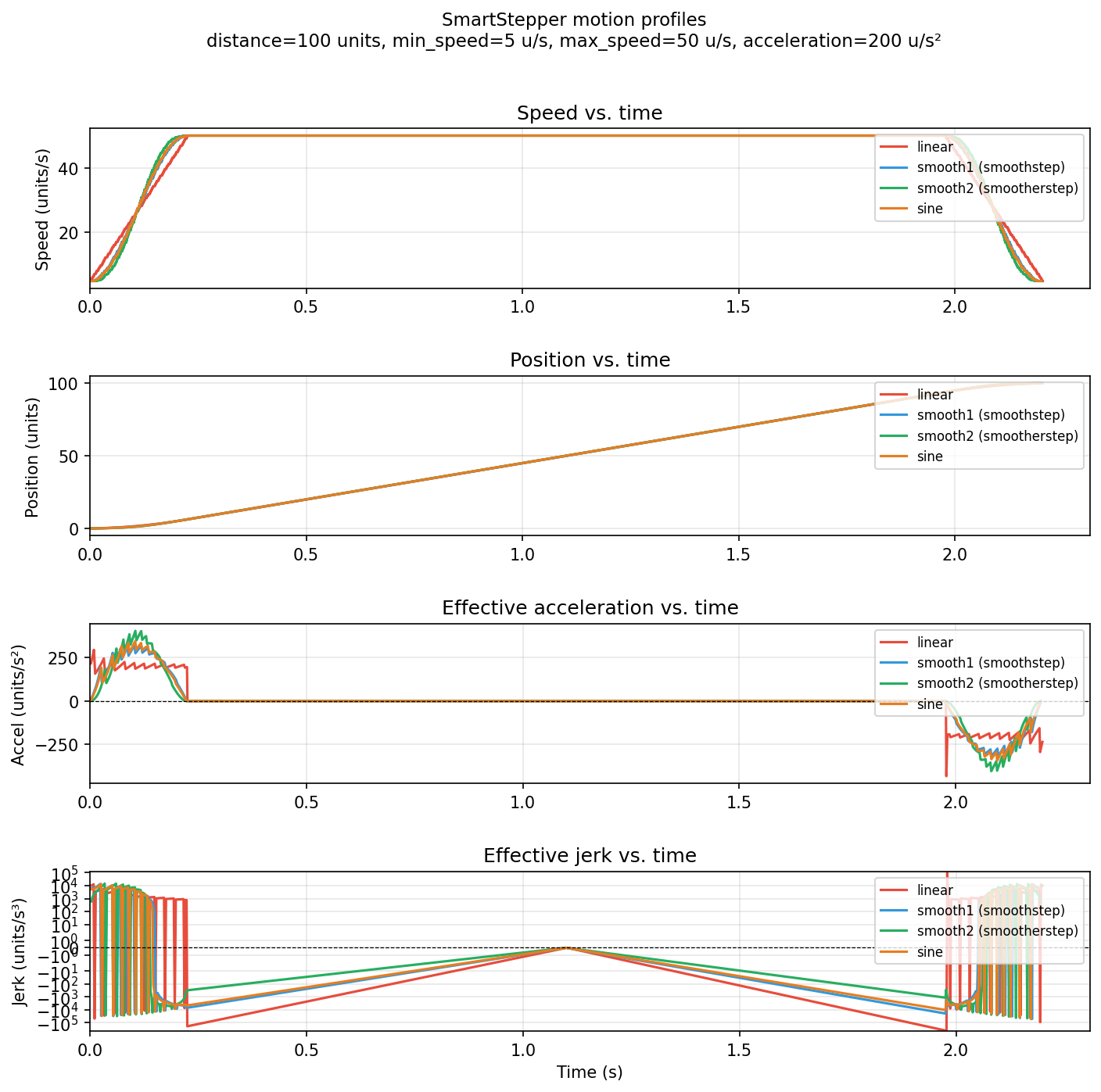

The plot below shows a 100-unit move with min_speed=5, max_speed=50, acceleration=200 for all four curves. Speed and position are nearly identical; the differences appear in the acceleration and jerk subplots.

smooth2 (green) is the recommended default: its zero-jerk endpoints produce the smoothest motor behaviour and the least mechanical stress. linear (red) has the fastest transition through the ramp but imposes sharp jerk at the start and end of every phase.

To regenerate this diagram after changing parameters:

python tools/plot_profiles.py --output docs/accel_curves.png

API reference

Constructor

SmartStepper(stepPin, dirPin, enablePin=None, accelCurve='smooth2')

Properties

Property	Writable	Description
position	yes (stopped only)	Current position in units
target	no	Target position set by last moveTo()
speed	no	Current speed in units/s
direction	no	'up', 'down', or None
moving	no	True while motor is running
timedOut	no	True if move deadline has passed
minSpeed	yes	Start/stop speed in units/s (triggers replan if moving)
maxSpeed	yes	Peak speed in units/s (triggers replan if moving)
acceleration	yes	Acceleration in units/s² (triggers replan if moving)
stepsPerUnit	yes (stopped only)	Microsteps per unit
reverse	yes (stopped only)	Invert direction pin polarity

Methods

Method	Description
moveTo(target, relative=False, timeout=None, triangular=False, accel_time=None)	Start a move; non-blocking
jog(maxSpeed=None, direction='up')	Start continuous jogging; non-blocking
stop(emergency=False)	Stop with decel (default) or immediately
waitEndOfMove()	Block until stopped; raises on timeout
enable()	Assert enable pin (active-low)
disable()	Release enable pin

Axis

Axis(stepper, hard_max_speed=None, hard_max_accel=None)

Wraps a SmartStepper. hard_max_speed and hard_max_accel are immutable after construction (default to the stepper's current maxSpeed / acceleration). AxisError is raised if a property setter or motion method would exceed these limits.

Property	Writable	Description
hard_max_speed	no	Immutable upper bound on maxSpeed
hard_max_accel	no	Immutable upper bound on acceleration
stepper	no	The underlying SmartStepper
position	yes (stopped)	Delegates to stepper.position
speed	no	Delegates to stepper.speed
moving	no	Delegates to stepper.moving
target	no	Delegates to stepper.target
minSpeed	yes	Delegates to stepper.minSpeed
maxSpeed	yes	Validated against hard_max_speed; raises AxisError if exceeded
acceleration	yes	Validated against hard_max_accel; raises AxisError if exceeded
stepsPerUnit	yes (stopped)	Delegates to stepper.stepsPerUnit
reverse	yes (stopped)	Delegates to stepper.reverse

Method	Description
prepare_move(target, relative=False, accel_time=None, triangular=False)	Configure DMA without starting; returns DMA channel number
start_move()	Trigger a previously prepared move (single-axis deferred start)
moveTo(target, relative=False, timeout=None, triangular=False, accel_time=None)	Immediate move (validates hard limits first)
stop(emergency=False)	Delegates to stepper.stop()
enable() / disable()	Delegates to stepper.enable() / disable()
async wait_done()	Async wait until this axis finishes moving

MultiAxis

MultiAxis(axes)

axes is a list of Axis objects.

Method	Description
move(targets)	Synchronized move; targets is a {axis: position} dict or a list parallel to the axes
async wait_done()	Async wait until all axes finish moving
stop(emergency=False)	Stop all moving axes

move() algorithm:

1. For each axis, compute the natural triangular accel time over its distance (clamped to hard_max_speed).
2. t_common = max(all accel times).
3. Call axis.prepare_move(target, accel_time=t_common) for each axis.
4. Write a DMA channel bitmask to DMA_MULTI_CHAN_TRIGGER — a single AHB write that starts all channels in the same bus cycle.

Arc

Arc(x_axis, y_axis)

x_axis and y_axis are Axis objects. ArcError is raised if the arc radius is zero or chord_tol is too small relative to the radius.

Method	Description
async move(x_end, y_end, i=0, j=0, direction='ccw', chord_tol=None, segment_min_speed=None)	Execute arc from current position; awaits each chord segment
async wait_done()	Async wait until the current chord segment completes
stop(emergency=False)	Stop all axes
chord_segments(x_end, y_end, i=0, j=0, direction='ccw', chord_tol=None)	Return list of (x, y) waypoints without moving

move() parameters:

Parameter	Description
x_end, y_end	Arc endpoint in user units
i, j	Center offset from current position (G-code I, J convention)
direction	'ccw' (G03, default) or 'cw' (G02)
chord_tol	Max chord-to-arc deviation in user units (default: Arc.DEFAULT_CHORD_TOL = 0.1)
segment_min_speed	minSpeed used during arc segments; defaults to ¼ of the axes' minSpeed

Tools

Host-side Python scripts in tools/ for visualizing motion profiles and captured signals. Both require matplotlib (pip install matplotlib).

tools/plot_profiles.py

Simulates the SmartStepper motion planner in standard Python (no hardware required) and plots speed, position, acceleration, and jerk vs. time for all four acceleration curves side-by-side.

python tools/plot_profiles.py [options]

Option	Default	Description
--distance F	100	Move distance in units
--min-speed F	5	Min speed in units/s
--max-speed F	50	Max speed in units/s
--acceleration F	200	Acceleration in units/s²
--steps-per-unit F	96	Steps per unit
--triangular	off	Triangular profile (no constant-velocity phase)
--accel-time F	—	Fixed acceleration phase duration in seconds
--output FILE	profiles.png	Save figure to FILE
--show	off	Display interactively instead of saving

--triangular and --accel-time are mutually exclusive.

tools/plot_motion.py

Reads a digital.csv exported by the HIL test suite (via Saleae Logic 2) and reconstructs each axis's position over time. Produces two plots: the X–Y spatial trajectory and each axis's position vs. time. Optionally overlays an ideal arc for radial error analysis.

python tools/plot_motion.py <capture_dir_or_csv> [options]

<capture_dir_or_csv> is either a directory containing digital.csv (as produced by run_capture() in test_hil.py) or the path to the CSV file itself.

Option	Default	Description
--steps-per-unit F	96	Steps per unit for both axes
--x-init F	0	Initial X position in units
--y-init F	0	Initial Y position in units
--step-ch N	0	Saleae channel for axis-1 STEP
--dir-ch N	1	Saleae channel for axis-1 DIR
--step-ch2 N	2	Saleae channel for axis-2 STEP
--dir-ch2 N	3	Saleae channel for axis-2 DIR
--dir-high-positive	on	DIR=1 → positive direction
--dir-high-negative	off	DIR=1 → negative direction
--arc-cx F	—	Arc center X for ideal arc overlay
--arc-cy F	—	Arc center Y for ideal arc overlay
--arc-r F	—	Arc radius for ideal arc overlay
--output FILE	motion.png	Save figure to FILE
--show	off	Display interactively instead of saving

Example — visualize an arc capture with ideal arc overlay:

python tools/plot_motion.py tests/captures/hil_arc/ \
    --steps-per-unit 100 --x-init 100 --y-init 0 \
    --arc-cx 0 --arc-cy 0 --arc-r 100 --show

Hardware notes

• Enable pin: Most stepper drivers use an active-low enable signal. The pin is driven high (disabled) at startup and low (enabled) automatically when a move begins.
• Direction pin setup time: The RP2040 PIO begins pulsing immediately after direction is set. If your driver requires a direction-setup hold time, add a short time.sleep_us() before calling moveTo().
• Step pulse width: The PIO generates a 50% duty-cycle square wave. Pulse width = 1 / (2 × freq). At 10 kHz step rate this is 50 µs per half-cycle, which is compatible with all common stepper drivers.

Credits

Original library by Frédéric (fma@gbiloba.org) (2023), posted at framagit.org/fma38/micropython-lib, and licensed under the GNU Affero General Public License v3.

pulseCounter.py is based on original work by Dave Hylands.

Changes by Ned Konz (ned@metamagix.tech) (2026)

• Fixed garbage-collector bug in pulseGenerator.py: DMA sequence array is now pinned as an instance variable to prevent it from being collected while DMA is active.
• Added PulseGenerator.update() for non-blocking mid-run DMA replacement.
• Generalized _accelPoints() to handle both acceleration and deceleration (reversal of a symmetric smoothstep curve), replacing the separate _decelPoints() method.
• Added _buildProfile() unified motion planner used by moveTo() and _replan().
• Added _replan() to rebuild the motion profile in-flight when speed or acceleration is changed mid-move.
• Made minSpeed, maxSpeed, and acceleration setters trigger _replan() instead of raising an error when the motor is moving.
• Added stop(emergency=False) with smooth deceleration by default.
• Added active-low enable pin support (enablePin constructor argument, enable() / disable() methods, auto-enable on move start).
• Added timeout parameter to moveTo(), timedOut property, and timeout handling in waitEndOfMove().
• Fixed position setter unit-conversion bug.
• Fixed waitEndOfMove() self-reference bug.
• Fixed multi-instance bug in pulseGenerator.py: SM index is now captured as an instance variable at construction time rather than read from the class variable (which could have been incremented by later instances).
• Replaced custom dma.py with MicroPython's built-in rp2.DMA: uses pack_ctrl() / config() API, drops import uctypes (array passed directly via buffer protocol), and is inherently RP2350-compatible.
• Extracted test/demo code into test_smartStepper.py.
• Added homing.py: async three-phase homing with configurable sensor polarity, speed parameters, and timeout.
• Added triangular=True parameter to moveTo(): produces a profile with no constant-velocity section; if the natural peak would exceed maxSpeed, acceleration is automatically reduced.
• Added accel_time parameter to moveTo(): fixes the duration of the acceleration phase, enabling precise multi-axis synchronization.
• Refactored _accelPoints() to accept an explicit accel override so that triangular and accel_time moves can use a per-move effective acceleration without altering the stepper's acceleration property.
