MarkdownDisplayView

A powerful iOS Markdown rendering component built on TextKit 2, providing smooth rendering performance and rich customization options. It also enables the streaming rendering of Markdown format in AI question-and-answer scenarios.

🚀 MarkdownDisplayView delivers streaming rendering effects comparable to leading AI terminal iOS clients like ChatGPT, Claude, Doubao, DeepSeek, and Grok, while offering even richer customization features and configuration options.

Contents

• Effects Showcase
• Demo Effects
• Features
• Requirements
• Installation
• Quick Start
• Custom Configuration
• Table of Contents
• Supported Markdown Syntax
• Complete Example
• Performance Optimization
• Advanced Usage
• Custom Extensions
• Troubleshooting
• Changelog
• Contributing
• License
• Author
• Acknowledgments
• Contact

Effects Showcase

Demo Effects

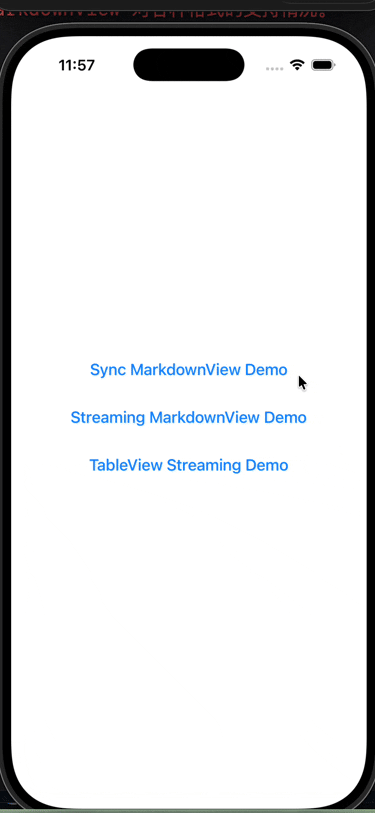

Normal Rendering

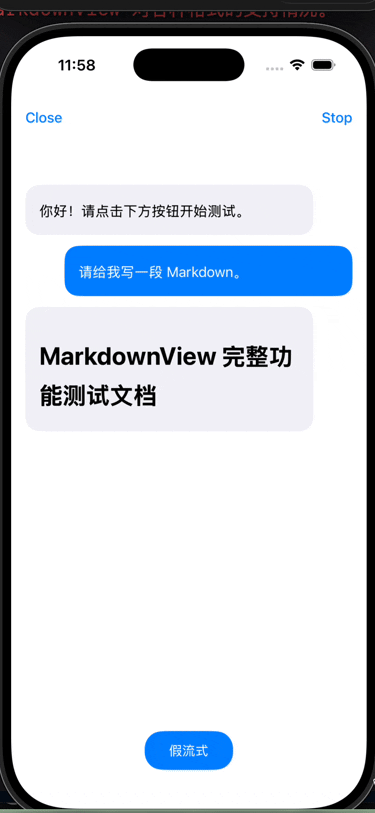

Streaming Rendering

• Simulated streaming

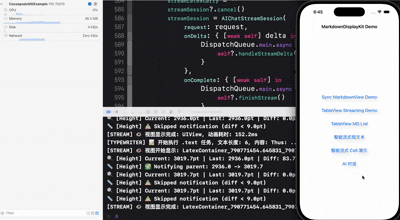

• Chat with AI model

Config.local.json structure:

// {
//   "host": "https://api.deepseek.com",
//   "path": "/chat/completions",
//   "apiKey": "",
//   "model": "deepseek-chat",
//   "systemPrompt": "You are a helpful assistant.",
//   "temperature": 0.7,
//   "stream": true,
//   "timeoutSeconds": 30
// }

Features

• 🚀 High-Performance Rendering — Based on TextKit 2, supports asynchronous rendering, incremental updates, streaming rendering, etc. Instant loading with ultra-fast first screen rendering.
• ⚡ Low CPU Usage — Streaming mode supports nested style rendering with CPU peak < 56% on iPhone 17 Pro simulator, averaging only 30%.
• 🎨 Full Markdown Support — Formula of LaTeX protocol, Headings, lists, tables, code blocks (with horizontal scrolling), blockquotes, images, and more.
• 🌈 Syntax Highlighting — Supports syntax highlighting for 20+ programming languages (Swift, Python, JavaScript, etc.).
• 📑 Automatic Table of Contents — Automatically extracts headings to generate an interactive TOC.
• 🎯 Highly Customizable — Comprehensive configuration for fonts, colors, spacing, etc.
• 🔌 Custom Extensions — Support for custom inline syntax parsing and code block renderers (e.g., Mermaid diagrams).
• 🔗 Event Callbacks — Link taps, image taps, TOC navigation.
• 📱 Native iOS — Built with UIKit and TextKit 2 for excellent performance.
• 🌓 Dark Mode — Built-in light and dark theme configurations.
• 📳 Haptic Feedback — Supports synchronized haptic feedback during streaming output for enhanced interaction experience.

Requirements

• iOS 15.0+ (due to TextKit 2 requirement)
• Swift 5.9+
• Xcode 16.0+

Installation

Swift Package Manager

Method 1: Add via Xcode

1. Open your project in Xcode.
2. Choose File → Add Package Dependencies...
3. Enter the repository URL: https://github.com/zjc19891106/MarkdownDisplayView.git
4. Select the version and click Add Package.

Method 2: In Package.swift

Add the dependency in Package.swift:

dependencies: [
    .package(url: "https://github.com/zjc19891106/MarkdownDisplayView.git", from: "1.7.2")
]

CocoaPods

Add the following lines to your Podfile:

pod 'MarkdownDisplayKit'

Then run:

pod install

Note: MarkdownDisplayKit depends on swift-markdown for Markdown parsing. Since swift-markdown is not yet available on CocoaPods trunk, you need to add it from the GitHub source as shown above.

Quick Start

Basic Usage

import UIKit
import MarkdownDisplayView

class ViewController: UIViewController {

    private let markdownView = ScrollableMarkdownViewTextKit()

    override func viewDidLoad() {
        super.viewDidLoad()

        // Add to view hierarchy
        view.addSubview(markdownView)
        markdownView.translatesAutoresizingMaskIntoConstraints = false
        NSLayoutConstraint.activate([
            markdownView.topAnchor.constraint(equalTo: view.safeAreaLayoutGuide.topAnchor),
            markdownView.leadingAnchor.constraint(equalTo: view.leadingAnchor),
            markdownView.trailingAnchor.constraint(equalTo: view.trailingAnchor),
            markdownView.bottomAnchor.constraint(equalTo: view.bottomAnchor)
        ])

        // Set Markdown content
        markdownView.markdown = """
        # Welcome to MarkdownDisplayView

        This is a **powerful** Markdown rendering component.

        ## Key Features
        - Full Markdown syntax support
        - Code syntax highlighting
        - Automatic table of contents generation
        - Asynchronous image loading

        ### Code Example

        ```swift
        let message = "Hello, World!"
        print(message)
        ```

        [Visit GitHub](https://github.com)
        """
    }
}

Handle Link Taps

markdownView.onLinkTap = { url in
    if UIApplication.shared.canOpenURL(url) {
        UIApplication.shared.open(url)
    }
}

Handle Image Taps

markdownView.onImageTap = { imageURL in
    print("Image tapped: \(imageURL)")
    // You can implement image preview functionality here
}

Custom Configuration

Using Preset Themes

// Use default light theme
markdownView.configuration = .default

// Use dark theme
markdownView.configuration = .dark

Custom Configuration

var config = MarkdownConfiguration.default

// Custom fonts
config.bodyFont = .systemFont(ofSize: 17)
config.h1Font = .systemFont(ofSize: 32, weight: .bold)
config.codeFont = .monospacedSystemFont(ofSize: 15, weight: .regular)

// Custom colors
config.textColor = .label
config.linkColor = .systemBlue
config.linkUnderlineEnabled = false    // Disable link underline
config.codeBackgroundColor = .systemGray6
config.blockquoteTextColor = .secondaryLabel

// Custom spacing
config.paragraphSpacing = 16
config.headingSpacing = 20
config.imageMaxHeight = 500
config.lineSpacing = MarkdownLineSpacingConfiguration(
    body: 6,
    heading: 8,
    quote: 6,
    codeBlock: 4
)

// Apply configuration
markdownView.configuration = config

Complete Configuration Options

Font Configuration

public var bodyFont: UIFont              // Body font
public var h1Font: UIFont                // H1 heading font
public var h2Font: UIFont                // H2 heading font
public var h3Font: UIFont                // H3 heading font
public var h4Font: UIFont                // H4 heading font
public var h5Font: UIFont                // H5 heading font
public var h6Font: UIFont                // H6 heading font
public var codeFont: UIFont              // Code font
public var blockquoteFont: UIFont        // Blockquote font

Color Configuration

public var textColor: UIColor                          // Text color
public var headingColor: UIColor                       // Heading color
public var linkColor: UIColor                          // Link color
public var linkUnderlineEnabled: Bool                  // Whether links display underline (default: true)
public var codeTextColor: UIColor                      // Code text color
public var codeBackgroundColor: UIColor                // Code background color
public var blockquoteTextColor: UIColor                // Blockquote text color
public var blockquoteBarColor: UIColor                 // Blockquote border color
public var tableBorderColor: UIColor                   // Table border color
public var tableHeaderBackgroundColor: UIColor         // Table header background
public var tableRowBackgroundColor: UIColor            // Table row background
public var tableAlternateRowBackgroundColor: UIColor   // Table alternate row background
public var horizontalRuleColor: UIColor                // Horizontal rule color
public var imagePlaceholderColor: UIColor              // Image placeholder color
public var footnoteColor: UIColor                      // Footnote color
public var tocTextColor: UIColor                       // TOC text color
public var detailsSummaryTextColor: UIColor            // Details summary text color

Spacing Configuration

public var paragraphSpacing: CGFloat       // Paragraph spacing
public var headingSpacing: CGFloat         // Heading spacing
public var listIndent: CGFloat             // List indentation
public var codeBlockPadding: CGFloat       // Code block padding
public var blockquoteIndent: CGFloat       // Blockquote indentation
public var imageMaxHeight: CGFloat         // Maximum image height
public var imagePlaceholderHeight: CGFloat // Image placeholder height

Line Spacing Configuration

public var lineSpacing: MarkdownLineSpacingConfiguration // Role-based line spacing config

public struct MarkdownLineSpacingConfiguration {
    public var body: CGFloat
    public var heading: CGFloat
    public var quote: CGFloat
    public var codeBlock: CGFloat
}

LaTeX Formula Configuration

public var latexFontSize: CGFloat          // LaTeX formula font size (default: 22)
public var latexAlignment: NSTextAlignment // LaTeX formula alignment (.left, .center, .right)
public var latexBackgroundColor: UIColor   // LaTeX formula background color
public var latexPadding: CGFloat           // LaTeX formula padding (default: 20)

Blockquote Configuration

public var blockquoteBackgroundColor: UIColor  // Blockquote background color
public var blockquoteBarWidth: CGFloat         // Blockquote left bar width (default: 4)
public var blockquoteContentSpacing: CGFloat   // Blockquote content spacing (default: 8)
public var blockquoteContentPadding: CGFloat   // Blockquote content padding (default: 12)

Table Configuration

public var tableMinColumnWidth: CGFloat    // Table minimum column width (default: 80)
public var tableMaxColumnWidth: CGFloat    // Table maximum column width (default: 200)
public var tableRowHeight: CGFloat         // Table row height (default: 44)
public var tableCellPadding: CGFloat       // Table cell padding (default: 16)
public var tableSeparatorHeight: CGFloat   // Table separator height (default: 1)
public var autoFixMalformedTables: Bool    // Auto-fix malformed table text from streaming/LLM output (default: true)

List Configuration

public var listItemSpacing: CGFloat        // List item spacing (default: 4)
public var listMarkerMinWidth: CGFloat     // List marker minimum width (default: 20)
public var listMarkerSpacing: CGFloat      // List marker to content spacing (default: 4)
public var listTopPadding: CGFloat         // Whole-list top padding (default: 0)
public var listBottomPadding: CGFloat      // Whole-list bottom padding (default: 0)

Details (Collapsible) Configuration

public var detailsSummaryFont: UIFont          // Details summary font
public var detailsSummaryTextColor: UIColor    // Details summary text color
public var detailsSummaryMinHeight: CGFloat    // Details summary minimum height (default: 40)
public var detailsContentPadding: CGFloat      // Details content padding (default: 12)
public var detailsSpacing: CGFloat             // Details internal spacing (default: 8)

Syntax Highlighting Configuration

public var syntaxColors: SyntaxHighlightColors      // Syntax highlighting colors (light theme)
public var syntaxColorsDark: SyntaxHighlightColors  // Syntax highlighting colors (dark theme)

// SyntaxHighlightColors structure
public struct SyntaxHighlightColors {
    public var keyword: UIColor       // Keyword color
    public var string: UIColor        // String color
    public var number: UIColor        // Number color
    public var comment: UIColor       // Comment color
    public var type: UIColor          // Type color
    public var function: UIColor      // Function color
    public var property: UIColor      // Property color
    public var preprocessor: UIColor  // Preprocessor color

    public static var xcode: SyntaxHighlightColors      // Xcode light theme
    public static var xcodeDark: SyntaxHighlightColors  // Xcode dark theme
}

Streaming Haptic Feedback Configuration

public var streamingHapticFeedbackStyle: StreamingHapticFeedbackStyle  // Haptic feedback style (default: .none)
public var streamingHapticMinInterval: TimeInterval                    // Minimum interval between haptics (default: 0.05s)

// StreamingHapticFeedbackStyle enum
public enum StreamingHapticFeedbackStyle {
    case none    // No haptic feedback (default)
    case light   // Light haptic feedback
    case medium  // Medium haptic feedback
    case heavy   // Heavy haptic feedback
    case soft    // Soft haptic feedback (iOS 13+)
    case rigid   // Rigid haptic feedback (iOS 13+)
}

// Usage example
var config = MarkdownConfiguration.default
config.streamingHapticFeedbackStyle = .light  // Enable light haptic feedback
config.streamingHapticMinInterval = 0.05      // 50ms minimum interval
markdownView.configuration = config

Table of Contents

Get Auto-Generated TOC

// Markdown content automatically parses headings to generate TOC
let tocItems = markdownView.tableOfContents

for item in tocItems {
    print("Level \(item.level): \(item.title)")
}

Generate TOC View

// Automatically generate clickable TOC view
let tocView = markdownView.generateTOCView()

// Add to interface
view.addSubview(tocView)

Scroll to Heading

// Scroll to corresponding position when TOC item is tapped
markdownView.onTOCItemTap = { item in
    markdownView.scrollToTOCItem(item)
}

Supported Markdown Syntax

Headings

# H1 Heading
## H2 Heading
### H3 Heading
#### H4 Heading
##### H5 Heading
###### H6 Heading

Text Formatting

**Bold text**
*Italic text*
***Bold and italic***
~~Strikethrough~~
`Inline code`

Lists

Unordered Lists

- Item 1
- Item 2
  - Nested item 2.1
  - Nested item 2.2

Ordered Lists

1. First item
2. Second item
   1. Nested 2.1
   2. Nested 2.2

Task Lists

- [x] Completed task
- [ ] Pending task

Links and Images

[Link text](https://example.com)
![Image description](https://example.com/image.png)

Blockquotes

> This is a blockquote
> Can contain multiple lines
>> Nested blockquotes are supported

Code Blocks

Supported programming languages for syntax highlighting:

• Swift, Objective-C
• JavaScript, TypeScript, Python, Ruby
• Java, Kotlin, Go, Rust
• C, C++, Shell, SQL
• HTML, CSS, JSON, YAML
• And more...

```swift
func greet(name: String) -> String {
    return "Hello, \(name)!"
}
print(greet(name: "World"))
```

Tables

| Column1 | Column2 | Column3 |
|---------|---------|---------|
| A1      | B1      | C1      |
| A2      | B2      | C2      |

Horizontal Rules

---
***
___

Details (Collapsible Sections)

<details>
<summary>Click to expand</summary>

This is the collapsed content
Can contain any Markdown syntax

</details>

Footnotes

This is text with a footnote[^1]

[^1]: This is the footnote content

Complete Example

Check out the complete example project in the Example/ExampleForMarkdown directory, which includes:

• All Markdown syntax rendering effects
• Custom configuration examples
• Event callback handling
• Performance testing

Run the example project:

cd Example/ExampleForMarkdown
open ExampleForMarkdown.xcodeproj

Performance Optimization

• Asynchronous Rendering - Markdown parsing and rendering execute in background queue, not blocking the main thread
• Incremental Updates - Uses Diff algorithm, only updates changed parts
• Lazy Image Loading - Images load asynchronously with caching mechanism
• Regex Caching - Syntax highlighting regex expressions are cached and reused
• View Reuse - Efficient view update strategy

Advanced Usage

Using Core View Directly (Without Scrolling)

let markdownView = MarkdownViewTextKit()
// You need to manage the scroll container yourself

Monitor Height Changes

let markdownView = MarkdownViewTextKit()

markdownView.onHeightChange = { newHeight in
    print("Content height changed to: \(newHeight)")
    // Can be used to dynamically adjust container height
}
// Set link tap callback
markdownView.onLinkTap = { [weak self] url in
    // Handle link tap
    if UIApplication.shared.canOpenURL(url) {
        UIApplication.shared.open(url)
    }
}
markdownView.onImageTap = { imageURL in
    // Get image if already loaded
    _ = ImageCacheManager.shared.image(for: imageURL)
}
markdownView.onTOCItemTap = { item in
    print("title:\(item.title), level:\(item.level), id:\(item.id)")
}

Using Scrollable View (Recommended)

let scrollableView = ScrollableMarkdownViewTextKit()
view.addSubview(scrollableMarkdownView)

scrollableMarkdownView.translatesAutoresizingMaskIntoConstraints = false

NSLayoutConstraint.activate([
    scrollableMarkdownView.topAnchor.constraint(
                equalTo: view.topAnchor, constant: 88),
    scrollableMarkdownView.leadingAnchor.constraint(equalTo: view.leadingAnchor),
    scrollableMarkdownView.trailingAnchor.constraint(equalTo: view.trailingAnchor),
    scrollableMarkdownView.bottomAnchor.constraint(equalTo: view.bottomAnchor),
])
// Built-in UIScrollView, automatically handles scrolling
scrollableMarkdownView.onLinkTap = { [weak self] url in
    // Handle link tap
    if UIApplication.shared.canOpenURL(url) {
        UIApplication.shared.open(url)
    }
}
scrollableMarkdownView.onImageTap = { imageURL in
    // Get image if already loaded
    _ = ImageCacheManager.shared.image(for: imageURL)
}
scrollableMarkdownView.onTOCItemTap = { item in
    print("title:\(item.title), level:\(item.level), id:\(item.id)")
}
scrollableMarkdownView.markdown = sampleMarkdown
// Back to table of contents
scrollableMarkdownView.backToTableOfContentsSection()

Streaming Markdown Display

• Other aspects are consistent with the scrollable markdown view above

    // Difference is in displaying content
    private func loadSampleMarkdown() {
        // Streaming render (typewriter effect)
        scrollableMarkdownView.startStreaming(
            sampleMarkdown,
            unit: .word,
            unitsPerChunk: 2,
            interval: 0.1,
        )
    }

    // If you need to show all content immediately (e.g., user clicks skip)
    @objc private func skipButtonTapped() {
        scrollableMarkdownView.markdownView.finishStreaming()
    }

Real-Time Streaming (LLM/Network APIs) - New in 1.5.0

For real-time streaming from LLM APIs (like ChatGPT, Claude) where content arrives in chunks:

class ChatViewController: UIViewController {
    private let scrollableMarkdownView = ScrollableMarkdownViewTextKit()

    // Start real streaming mode
    func startLLMStream() {
        scrollableMarkdownView.markdownView.startRealStreaming()
    }

    // Append chunks as they arrive from the API
    func onChunkReceived(_ chunk: String) {
        scrollableMarkdownView.markdownView.appendStreamContent(chunk)
    }

    // Call when stream completes
    func onStreamComplete() {
        scrollableMarkdownView.markdownView.finishStreaming()
    }
}

Recommended configuration for streaming AI chat in table/collection cells:

var config = MarkdownConfiguration.default
config.typewriterTextMode = .append
config.typewriterHeightUpdateInterval = 20
config.streamMinModuleLength = 20
scrollableMarkdownView.markdownView.configuration = config

Key Features:

• Smart Buffering: Automatically buffers incomplete Markdown structures (unclosed code blocks, tables, LaTeX)
• isPlainText() Detection: MarkdownStreamBuffer detects non-Markdown content
• Faster Plain Text Streaming: For plain text without Markdown markers, module submission can happen at \n boundaries instead of strictly waiting for \n\n
• Markdown Behavior Unchanged: Markdown content still waits for \n\n paragraph boundaries
• Incremental Rendering: Renders complete modules immediately while buffering incomplete content
• Typewriter Effect: Smooth character-by-character animation for rendered content

Custom Extensions

MarkdownDisplayKit supports custom extensions to add your own Markdown syntax and rendering.

Built-in Video Extension

Register the video extension in AppDelegate:

import MarkdownDisplayKit

func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {
    // Register video extension
    MarkdownCustomExtensionManager.shared.registerVideoExtension()
    return true
}

Syntax: [video:filename]

## Video Demo

[video:myVideo]

Supported formats: .mov, .mp4, .m4v

Features:

• Auto-generates video thumbnail
• Displays video duration
• Click to play with QuickLook

Creating Custom Extensions

Implement three protocols to create your own extension:

1. Custom Parser

class MentionParser: MarkdownCustomParser {
    let identifier = "mention"
    let pattern = "@([a-zA-Z0-9_]+)"  // Regex pattern

    func parse(match: NSTextCheckingResult, in text: String) -> CustomElementData? {
        guard let range = Range(match.range(at: 1), in: text) else { return nil }
        let username = String(text[range])

        return CustomElementData(
            type: "mention",
            rawText: "@\(username)",
            payload: ["username": username]
        )
    }
}

2. Custom View Provider

class MentionViewProvider: MarkdownCustomViewProvider {
    let supportedType = "mention"

    func createView(
        for data: CustomElementData,
        configuration: MarkdownConfiguration,
        containerWidth: CGFloat
    ) -> UIView {
        let label = UILabel()
        label.text = data.rawText
        label.textColor = .systemBlue
        label.font = configuration.bodyFont
        label.backgroundColor = UIColor.systemBlue.withAlphaComponent(0.1)
        label.layer.cornerRadius = 4
        label.sizeToFit()
        return label
    }

    func calculateSize(
        for data: CustomElementData,
        configuration: MarkdownConfiguration,
        containerWidth: CGFloat
    ) -> CGSize {
        let text = data.rawText as NSString
        let size = text.size(withAttributes: [.font: configuration.bodyFont])
        return CGSize(width: size.width + 8, height: size.height + 4)
    }
}

3. Custom Action Handler

class MentionActionHandler: MarkdownCustomActionHandler {
    let supportedType = "mention"

    func handleTap(data: CustomElementData, sourceView: UIView, presentingViewController: UIViewController?) {
        guard let username = data.payload["username"] else { return }
        print("Navigate to user profile: \(username)")
    }
}

4. Register Extensions

let manager = MarkdownCustomExtensionManager.shared
manager.register(parser: MentionParser())
manager.register(viewProvider: MentionViewProvider())
manager.register(actionHandler: MentionActionHandler())

Supported Custom Syntax Patterns

Extension	Syntax	Description
Video	[video:filename]	Embed video with QuickLook playback
Mention*	@username	User mention (example)
Emoji*	::emoji_name::	Custom emoji (example)

*Example implementations, not included by default

Code Block Renderers

In addition to inline syntax extensions, you can also create custom code block renderers for specific languages:

Mermaid Diagram Renderer Example

public final class MermaidRenderer: MarkdownCodeBlockRenderer {
    public let supportedLanguage = "mermaid"

    public func renderCodeBlock(
        code: String,
        configuration: MarkdownConfiguration,
        containerWidth: CGFloat
    ) -> UIView {
        // Use WKWebView to render Mermaid diagrams
        let view = MermaidWebView(code: code, frame: ...)
        return view
    }

    public func calculateSize(
        code: String,
        configuration: MarkdownConfiguration,
        containerWidth: CGFloat
    ) -> CGSize {
        // Estimate height based on diagram type
        return CGSize(width: containerWidth - 32, height: estimatedHeight)
    }
}

Register Code Block Renderer

let manager = MarkdownCustomExtensionManager.shared
manager.register(codeBlockRenderer: MermaidRenderer())

Supported Diagram Types (via Mermaid.js):

• Flowchart (flowchart/graph)
• Sequence Diagram (sequenceDiagram)
• Class Diagram (classDiagram)
• State Diagram (stateDiagram)
• Gantt Chart (gantt)
• Mind Map (mindmap)

Troubleshooting

1. Build Error: Cannot find UIKit

Problem: Build fails when using swift build on macOS

Solution: This library only supports iOS platform, must be built in Xcode targeting iOS simulator or device

2. Images Not Displaying

Problem: Images in Markdown don't display

Causes:

• Image URL is invalid or inaccessible
• Network permissions not configured

Solutions:

• Check network permission configuration in Info.plist
• Use valid image URLs

3. Swift Concurrency Warnings

Problem: Sendable-related warnings appear

Solution: Library is built with Swift 5.9 to avoid strict concurrency checking

Changelog

1.7.4 (2026-04-10)

• 📏 Height Measurement Stabilization - Hardened notifyHeightChange with width fallback, frame-height fallback, and transient-zero suppression to avoid 0 ↔ actual height jumps during initial layout or rapid updates.
• 🌊 Paragraph-Level Streaming Fallback - Real streaming now emits single-heading or heading-less Markdown by paragraph boundaries when heading-based segmentation is unavailable, while skipping fenced code blocks.
• 📐 Whole-List Top/Bottom Padding - Added listTopPadding and listBottomPadding so the entire list wrapper can apply configurable top/bottom spacing without changing per-item layout.

1.7.2 (2026-04-04)

• ➕ isPlainText() Detection - Added isPlainText() in MarkdownStreamBuffer to identify non-Markdown content.
• ⚡ Faster Plain-Text Output - For plain text without Markdown markers, modules can now be submitted at \n boundaries instead of requiring \n\n, enabling faster typewriter output.
• ✅ Markdown Flow Unchanged - Markdown content behavior is unchanged and still waits for \n\n paragraph boundaries.

1.7.1 (2026-04-03)

• 🐛 Ordered List Height Consistency Fix - Fixed an issue where the first ordered-list item could be stretched taller than following items in some stack/reuse layouts.
• 🧱 List Layout Constraint Hardening - Adjusted list wrapper constraints (bottom <=) and strengthened vertical hugging/compression priorities to prevent extra height from being absorbed by the first item.
• 🧹 List Content Normalization - Added normalization/cleanup for invisible list text nodes (leading/trailing newlines, zero-width/control whitespace) to avoid phantom height.

1.7.0 (2026-04-03)

• 📊 Markdown Table Column Alignment - Added support for table alignment syntax (:---, :---:, ---:) and applied alignment per column.
• 🛠 Malformed Table Auto-Fix - Added autoFixMalformedTables (default: true) to normalize common broken table output (isolated |, accidental blank lines inside table blocks).
• ✍️ Configurable Line Spacing - Added lineSpacing configuration for body, heading, quote, codeBlock, replacing fixed line spacing constants.
• 🔗 Table Link Tap Callback - Table cells keep using UILabel for better scrolling performance; link tap now routes through table cell selection and triggers existing onLinkTap.
• 🐛 Touch Routing Fix - Fixed gesture conflict where outer TextKit tap handling could swallow table attachment touches.
• ⚠️ Configuration Cleanup - Removed table-level alignment override config; table text alignment now follows Markdown table syntax (fallback: left).

1.6.9 (2026-03-17)

• 🔗 Link Underline Control - Added linkUnderlineEnabled configuration option to control whether links display underlines
  • New property linkUnderlineEnabled: Bool in MarkdownConfiguration (default: true)
  • Affects all link types: inline Markdown links ([text](https://github.com/zjc19891106/MarkdownDisplayView/blob/HEAD/url)) and TOC navigation links
  • Root cause fix: Implemented NSTextLayoutManagerDelegate.renderingAttributesForLink(_:at:defaultAttributes:) to properly intercept TextKit 2's built-in link rendering pipeline, which previously ignored NSAttributedString underline attributes entirely

1.6.8 (2026-02-06)

• 📜 Code Block Horizontal Scrolling - Code blocks now support horizontal scrolling to view complete long code lines
  • Implemented using NSTextAttachmentViewProvider pattern, consistent with LaTeX formula and table rendering architecture
  • New CodeBlockAttachment and CodeBlockAttachmentViewProvider classes for code block rendering
  • Code text no longer wraps; users can scroll horizontally to view full code content
  • Maintains original syntax highlighting, background color, and corner radius styling

1.6.2 (2026-02-05)

• 📳 Haptic Feedback Timing Optimization - Haptic feedback now syncs precisely with TypewriterEngine output rhythm
  • Text haptics: Only triggers when revealCharacter actually displays new characters
  • Block haptics: Triggers when block element animation completes (image, LaTeX, etc.)
  • Removed unnecessary haptics for container views (.show) and small elements (.label)
  • Haptic feedback no longer triggers on data arrival, but on actual content display

1.6.1 (2026-02-02)

• 📳 Streaming Haptic Feedback - Added haptic feedback support during streaming output for enhanced user experience
  • New StreamingHapticFeedbackStyle enum with options: .none, .light, .medium, .heavy, .soft, .rigid
  • New configuration options: streamingHapticFeedbackStyle (feedback intensity) and streamingHapticMinInterval (minimum interval)
  • Supports both real streaming (appendStreamData, appendBlock) and fake streaming (startStreaming) modes

1.6.0 (2026-01-30)

• 🎨 Comprehensive Configuration Options - Added extensive customization for all Markdown elements:
  • LaTeX Formula: latexFontSize, latexAlignment (left/center/right), latexBackgroundColor, latexPadding
  • Blockquote: blockquoteBackgroundColor, blockquoteBarWidth, blockquoteContentSpacing, blockquoteContentPadding
  • Table: tableMinColumnWidth, tableMaxColumnWidth, tableRowHeight, tableCellPadding, tableSeparatorHeight
  • List: listItemSpacing, listMarkerMinWidth, listMarkerSpacing
  • Details: detailsSummaryFont, detailsSummaryTextColor, detailsSummaryMinHeight, detailsContentPadding, detailsSpacing
  • Syntax Highlighting: syntaxColors, syntaxColorsDark with SyntaxHighlightColors struct (keyword, string, number, comment, type, function, property, preprocessor)
  • TOC: tocTextColor
• 🐛 Bug Fix - tableRowBackgroundColor now properly applied to table rows
• 📝 Documentation - Updated README with complete configuration options

1.5.9 (2026-01-26)

• 🚀 Typewriter Append - Add .append mode with throttled height updates to reduce layout jumps during cell streaming
• ⚙️ Streaming Config - Expose typewriterTextMode, typewriterHeightUpdateInterval, streamMinModuleLength
• 🧹 Memory Cleanup - Add cache clearing helpers and Mermaid WebView cleanup to reduce retained memory
• 🧪 Example Update - AI chat stream uses safer LaTeX normalization (code regions ignored) and recommended config

1.5.8 (2026-01-23)

• 📝 Docs Update - Refresh README content
• 🐛 SPM Fix - Fix simulator build error in Swift Package Manager example project

1.5.2 (2026-01-08)

• 🐛 Crash Fix - Serialize swift-markdown parsing to avoid cmark_parser_attach_syntax_extension race crash in concurrent renders
• 🧹 Reuse Safety - Add resetForReuse() to clear internal caches/state for UITableViewCell reuse scenarios
• 🧪 Example Update - Add crash reproduction screen and incremental row insert demo for table view usage

1.5.1 (2026-01-07)

• 🐛 Bug Fix - Fixed potential crash when processing Unicode characters (emoji, CJK characters) in streaming mode
  • MarkdownStreamBuffer.extractModule: Use safe string index with limitedBy to prevent out-of-bounds crash
  • TypewriterEngine.calculateDelay: Use safe string index to prevent crash when calculating delay for special characters

1.5.0 (2026-01-04)

• 🚀 Real Streaming Support - New MarkdownStreamBuffer for intelligent real-time streaming from network/LLM APIs
  • Smart module detection: automatically detects complete Markdown blocks (headings, code blocks, tables, LaTeX)
  • Handles incomplete structures: waits for closing tags before rendering (e.g., unclosed ``` or $$)
  • Incremental rendering: renders complete modules immediately while buffering incomplete content
• 💫 Smart Waiting Indicator - In real streaming mode, automatically shows waiting animation when TypewriterEngine queue is empty and no network data arrives
• 🏗️ Code Refactoring - Extracted MarkdownTextViewTK2, MarkdownStreamBuffer, and TypewriterEngine into separate files for better maintainability
• 🐛 Streaming Fixes - Multiple fixes for real streaming mode stability and rendering issues

1.4.1 (2026-01-02)

• 🐛 Bug Fix - Fixed code blocks not rendering properly in real streaming mode when content arrives in multiple chunks

1.4.0 (2025-12-31)

• 🚀 Instant Loading - Significantly optimized loading speed with ultra-fast first screen rendering
• ⚡ CPU Optimization - Streaming mode with nested style rendering now uses much less CPU (iPhone 17 Pro simulator peak < 56%, average 30%)
• 🔌 Enhanced Custom Extensions - New MarkdownCodeBlockRenderer protocol for custom code block rendering (e.g., Mermaid diagrams)
• 🎨 Mermaid Support - Example project now includes Mermaid diagram renderer supporting flowcharts, mind maps, and more

1.0.0 (2025-12-15)

• 🎉 Initial release
• ✅ Full Markdown syntax support
• ✅ 20+ language code highlighting
• ✅ Automatic table of contents generation
• ✅ Dark mode support
• ✅ High-performance asynchronous rendering

Contributing

Issues and Pull Requests are welcome!

Before submitting a PR, please ensure:

• Code compiles successfully
• Follows existing code style
• Adds necessary tests

License

This project is licensed under the MIT License - see the LICENSE file for details.

Author

MarkdownDisplayView is created and maintained by @zjc19891106. If this library saved you time, consider supporting me. Thanks to everyone who has supported me so far.

• Support the author

• WeChat

• AliPay

• Paypal



Acknowledgments

• swift-markdown - Markdown parsing library
• KaTeX - Math formula rendering fonts
• Apple TextKit 2 - High-performance text rendering framework
• Gemini3 Pro&Claude&Grok&GPT
• All contributors and users
• All friends who provided suggestions and feedback

Contact

If you have questions or suggestions, please contact via:

• Submit GitHub Issue

• Send email to: 984065974@qq.com or luomobancheng@gmail.com

• QQ Group

• WeChat Group

• Telegram

• Discord

---

**If you find this project helpful, please give it a Star ⭐️ for support!
